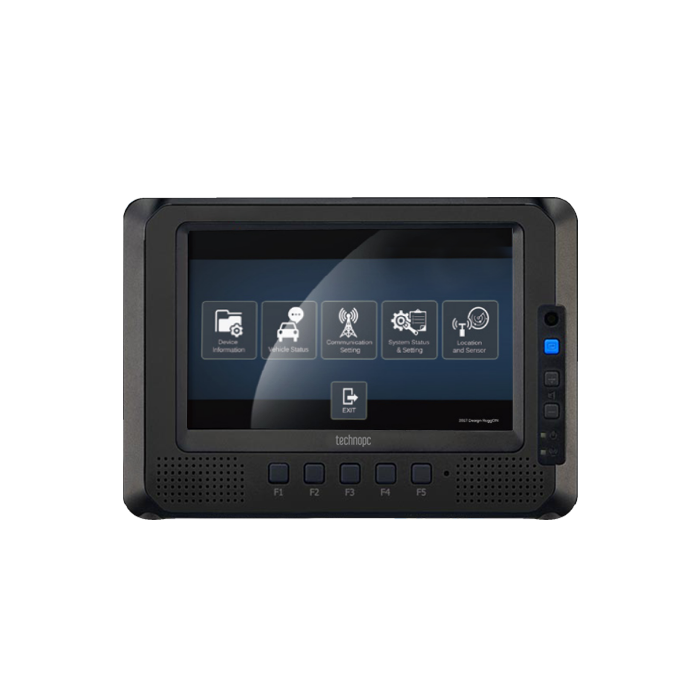

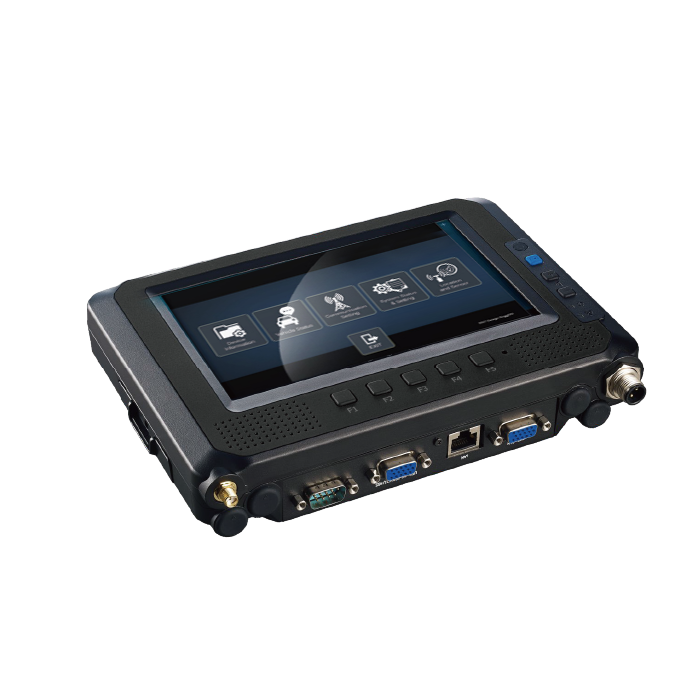

Industrial Panel PC TP AKS 07

The Most Tough Industrial Requirements
Technopc's industrial Panel PCs are systems ready to guarantee the compatibility of hardware and software. With 100% industry capacity, Panel PCs meet the most demanding industrial requirements for shock, vibration and temperature resistance.

Other News

TP 07

TP A7

Technical Specifications

OPERATING SYSTEM	Android 5.1 / Windows
PROCESSOR	Quad Core Cortex-A7 1.1GHz / 1.3GHz
CHIPSET	SoC
RAM	1GB / 2GB LPDDR2 SDRAM
SCREEN	7" W SVGA TFT LCD Touch Screen 1024x600 500 nit
STORAGE	8GB / 16GB eMMC and Micro SD slot
EXTENSION	1xRS-232, 1x RS-232/422/485
AUDIO
NETWORK	802.11 a/b/g/n (Dual Module), 4G, BT 4.0 Class 2 Bluetooth
PORTS	2xUSB2.0, Micro Sim Slot, 1xDC, 2xDI, 2xDO, 1x RJ45, 1xCan-Bus, 1xRS232, 1xRS232/485 (Bios)
WORKING HEAT
STORAGE HEAT
POWER	9 ~ 36 VDC 5000mAh
SIZE
CERTIFICATES	CE , FCC
OTHER	A - GPS (Ublox M8Q) Vehicle power protection (ISO 7637-2), Power cable, DB15 - USB cable, DB15 - DIO / CAN
GUARANTEE	2 Years

All Specifications

Overview
True Durability
Modern industrial design, usability and flexibility - these are the most important requirements for today's interfaces. Whatever your requirements, Technopc offers you semi- and fully customized Panel PCs for a wide range of applications in the automation, transport and medical and defense industries.
